Album

Image is a digital picture with a format as BMP, PNG, JPEG. An image may be in the black and white, 4bit, 16bit, 24bit, or 32bit color. BMP is a uncompressed format on Windows; GIF and PNG are lossless compressed format; and JPEG is the lose compressed format.

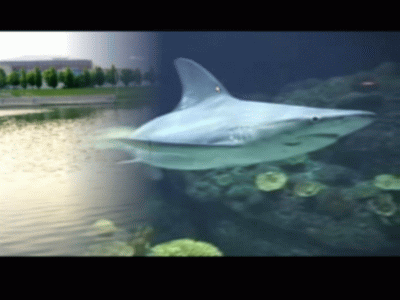

Fade in and Fade out

In the following code a theme will display a list of images. A date text will be painted on an image through a transform.

package require media
package require mcllib

Load media and mcllib package.

_mcl

open _mcl

set image_list 	{image001.jpg image002.jpg}
set text_list 	{
  "July 15, 2001"
  "August 23, 2001"}
foreach e $image_list {
  lappend picture_list [getPath media image $e]
}

generate the list of full image path. getPath function is in the mcllib package. It joins a list of directory name to form a path. foreach command picks up every item from image_list as e and append to form a picture_list with full path.

_theme {
  title    "Ladybug Studio"
  orgx     0
  orgy     0
  width    352
  height   240
  region   roundrect
  wcorner  20
  hcorner  20
  mode     windowless}

open theme with round rect and windowless mode.

  set duration 	5000
  while {1} {

start loop, duration is the waiting seconds. 5000 means 5 seconds.

    for {set i 0} {$i < [llength $picture_list]} {incr i} {
      set word [lindex $text_list $i]
      set pict [lindex $picture_list $i]

get text from text_list and picture from picture_list.

      _image {name $pict}

open image with name stored in the variable $pict

        _text {string "$word" font Roman size 16
               orgx 4 orgy [expr [?image height]-20]
               fgcolor 0x000000}

open text with string in $word, font name "Roman", font size 16. [?image height] get the height of the opened image. expr computes the expression. fgcolor is the foreground color.

          _transform {name Fade progress 0.4}

open transform Fade with start progress value 0.4

             _graph {theme {transform image text}}
               graph show
             graph_

use image and text as the inputs of transform, and the output of transform is linked to theme. "graph show" will display the picture. graph_ will close graph link.

           transform_
         text_
       image_

close transform, text and image

       after $duration

wait $duration seconds

    }
  }
theme_
mcl_

close theme and mcl
