IDE

  • Description

    Ladybug Studio XP includes an IDE (Integration Development Environment) to easy mCL development. It consists of a mCL engine, an editor, a debugger, and a compiler. Other functions include an viewer, a keyword editor/viewer, and a configuration panel.

  • Snapshot

  • Feature List

    Editor

    You can open, edit, and save a mCL file. It is easy to open multiple files at the same time and switch from one editor window to another by clicking a button at the bottom bar. Editor can highlight keywords and comments with colors.

    Debugger

    You can step over execute a command, step in a procedure, set breakpoints, and watch varibales in this GUI debugger.

    Compiler

    You can generate MCL bytecode and hide the source code.

    Viewers

    Folder viewer is a tree viewer of folder and drivers. You can expand the folder and access file by mouse clicking. Keyword viewer display help information while you type a command. Console viewer display message of console.

    Keyword Editor

    You can add, delete, or modify keywords and their arguments in a keyword database. The keyword database is used to retrive the help information of a command. You can customize keyword database for your own commands.

  • User Interface

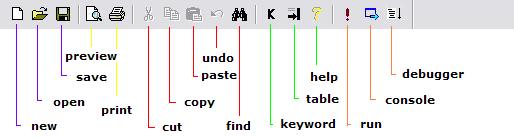

    This is the menu and toolbar in IDE. To read the short prompt of an icon in the toolbar simply move mouse and stay there for seconds.

    File

    (i)New item creates a new file. (ii)Open item opens an existing file. (iii)Save item saves a file. (iv)SaveAs item saves a file with a new name. (v)Close item closes a file.

    (i)Print item prints file. (ii)Print Preview item shows the preview of the file. (iii)Page Setup item sets the print page. (iv)Recent file list shows a group of files. (v)Send item sends file through email.

    Edit

    (i)Undo item will undo the last operation. (ii)Cut item will cut a paragraph. (iii)Copy item will copy a paragraph. (iv)Paste item will paste content in the clipboard. (v)Paste special may paste an formatted document. (vi)Clear will clear a paragraph. (vii)Select All will select entire text.

    (i)Find item finds a word in the script. (ii)Find Next try to find next word. (iii)Replace will replace the found word.

    Insert

    (i)Date and Time item help you insert a date/time from selected format. (ii)Object item insert an object into the script. You do not need to use it.

    Format

    There is no need to use this menu for Mcl script because no format on it. (i)Font item sets the font of the script.(ii)Bullet Style item sets the bullet style. (iii)Paragraph item sets the attributes of the paragraph. (iv)Tabs item sets the tab stop position and size.

    Help

    Neatware MyrmecoX Website directs you to access the MyrmecoX documents on Neatware's website.

    Build

    This item execute current MCL script with different defaults

    (i)Run is the normal execution of MCL script. You can also run this item simply by clicking the icon button on the right-most of toolbar. (ii)Run with console launch a MCL program with a console, so you can use gets/puts on standard input/output. (iii)Run with debugger will launch the MCL debugger, then you can use step in or over to debug MCL script.

    Settings

    1. Configuration

    The setting property sheet is showed below

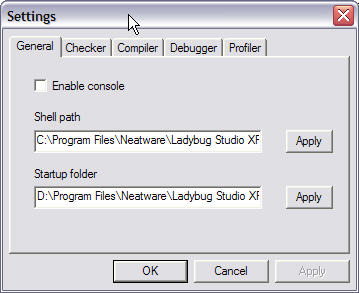

    General

    The Enable console check makes console show after Run.

    The Shell path box allows you specify a MCL shell path and executable program name with parameters. After clicking the Apply button you store this path as default. Then, you can run this Tcl shell along with the current script from the item "MCL Shell" under the Build menu.

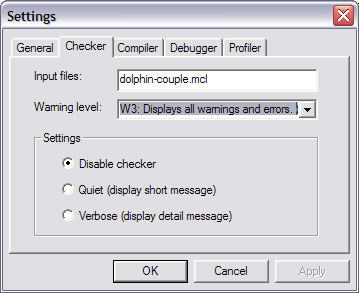

    Checker

    You can write current script name and *.mcl in the Input files box. Then, you can check the syntax of the script or all the mcl files in the current directory. Warning level drop-dwon box lets you select the warning level. Under the check box of Setting, Disable check disables the function of checker which is the default setting. Quiet check will display short message. Finally, Verbose check will display detail messages.

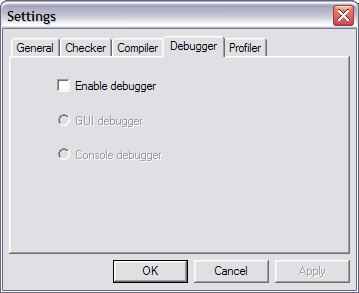

    Debugger

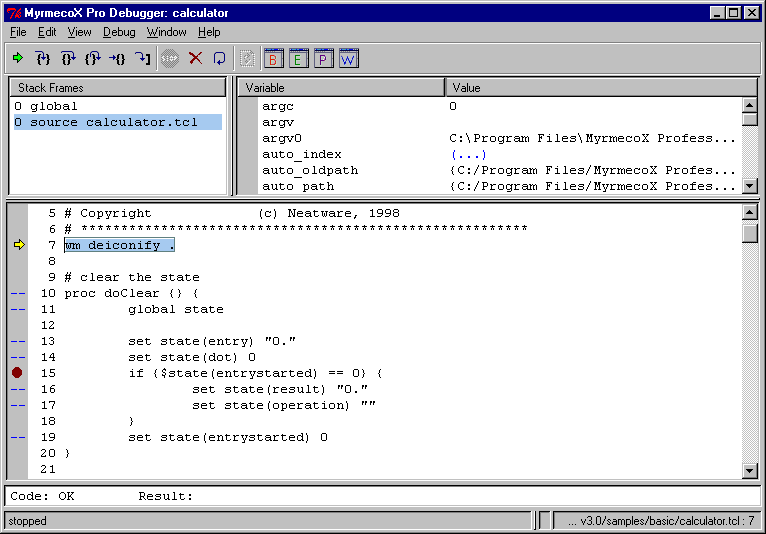

    GUI Debugger allows you debug Mcl code with the source code. It is convenient to set breakpoints, step in/over the code, and watch the value of a variable. For more details please read the Debugger manual. Click GUI Debugger Snaphot to have a breview.

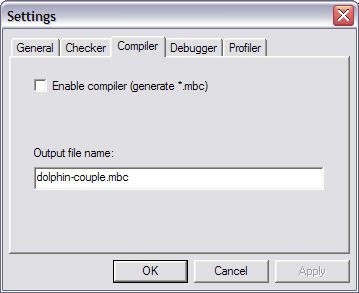

    Compiler

    When you set the Enable check and fill the Output file name, after the execution of Run with console, Laydbug Studio will generate a .mbc Mcl Byte Code file. The default name is the current MCL code name with the .mbc postfix instead of the .mcl postfix. You can execute a .mbc file without exposure your source code.

    2. Edit keywords

    You can define your own keyword set. Mcl command has the format: command subcommand argument ... . A command may have no subcommand such as puts command. A command with subcommand can specify more operations, for example, file join , file dirname, etc..

    Keyword editor, Move mouse on

    An argument could be var, option, and pair in the keyword editor.

    var represents that the argument is a variable or an expression. For example, in the command [set v $e], the keyword is set, its variable v is set to (var Argument1 VARIABLE) and the e is set to (var Argument2 VALUE) in the field (Type Name Value) respectively.

    option represents that the argument is optional. In the MCL its syntax is ?option?. For example, the puts command has the syntax [puts ?-nonewline? ?channelid? str]. Its keyword is puts. Its options are set to (option OPTION [-nonewline]) and (option OPTION [CHANID]) in the field (Type Name Value) respectively.

    pari represents that the argument is a name and value pair. In the MCL its syntax is [-title value]. For example, [pack .x -padx 20 -pady 40] where -padx 20 is a name and value pair. Without this pair in a command, the name item has the default value.

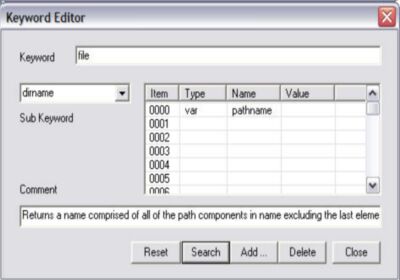

    Keyword editor completes keyword operations. You may add a keyword with a sub-keyword and a group of arguments, search a keyword, edit keyword's arguments and comment, or delete a keyword. The command keyword database is used to prompt keyword information.

    The Keyword box allows a user input and edit a keyword. Subkeyword field is a combobox that allows you input a subkeyword or select a subkeyword from available list. The Comment box allows you to input or modify the description of a keyword and its subkeyword. The Argument field lists the arguments with form (Item#, Type, Name, Value). You may edit each item in its cells.

    A group of buttons complete different operations. Reset button sets the editor to the initial state and clears all setting values. After you input a keyword and click Search button, Keyword editor will try to find the keyword along with its subkeyword and arguments. If a keyword has several subkeywords, clicking the Search button leaving subkey as empty, you may read the list of subkeywords by clicking on dropdown button. Then you can select one subkeyword and do search again to retrive exact arguments. Add button adds a keyword or a subkeyword and its arguments to the database. Delete button will delete a keyword and all its subkeywords. Close button closes the dialog box and save database to a default file named "_diction.dat".

    3. Window list

    It shows current opened file windows.
